NVIDIA GB200 NVL72
Supercharging Next-Generation AI and Accelerated Computing
Supercharging Next-Generation AI and Accelerated Computing

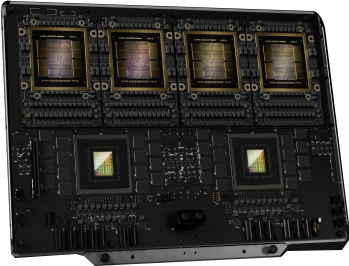

The GB200 Grace Blackwell Superchip is a key component of the NVIDIA GB200 NVL72, connecting two high-performance NVIDIA Blackwell Tensor Core GPUs and an NVIDIA Grace CPU using the NVIDIA® NVLink®-C2C interconnect to the two Blackwell GPUs.
GB200 NVL72 introduces cutting-edge capabilities and a second-generation Transformer Engine which enables FP4 AI and when coupled with fifth-generation NVIDIA NVLink, delivers 30X faster real-time LLM inference performance for trillion-parameter language models. This advancement is made possible with a new generation of Tensor Cores, which introduce new microscaling formats, giving high accuracy and greater throughput. Additionally, the GB200 NVL72 uses NVLink and liquid cooling to create a single massive 72-GPU rack that can overcome communication bottlenecks.
GB200 NVL72 includes a faster second-generation Transformer Engine featuring FP8 precision, enabling a remarkable 4X faster training for large language models at scale. This breakthrough is complemented by the fifth-generation NVLink, which provides 1.8 terabytes per second (TB/s) of GPU-to-GPU interconnect, InfiniBand networking, and NVIDIA Magnum IO™ software.

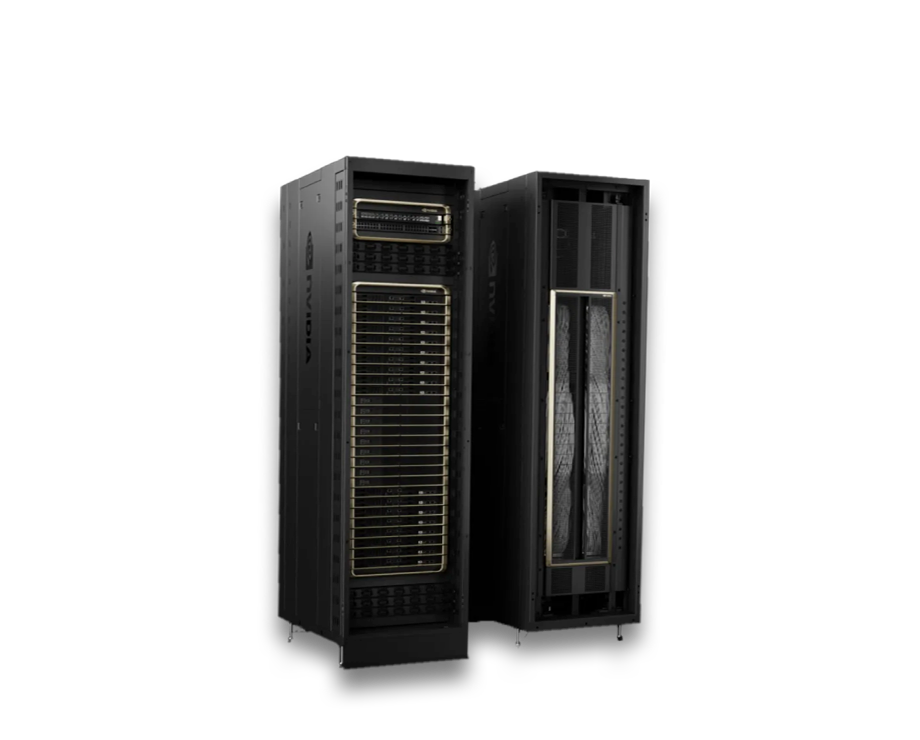

Liquid-cooled GB200 NVL72 racks reduce a data center’s carbon footprint and energy consumption. Liquid cooling increases compute density, reduces the amount of floor space used, and facilitates high-bandwidth, low-latency GPU communication with large NVLink domain architectures. Compared to NVIDIA H100 air-cooled infrastructure, GB200 delivers 25X more performance at the same power while reducing water consumption.
Databases play critical roles in handling, processing, and analyzing large volumes of data for enterprises. GB200 takes advantage of the high-bandwidth memory performance, NVLink-C2C, and dedicated decompression engines in the NVIDIA Blackwell architecture to speed up key database queries by 18X compared to CPU and deliver a 5X better TCO.
| GB200 NVL72 | GB200 Grace Blackwell Superchip | |
|---|---|---|
| Configuration | 36 Grace CPU : 72 Blackwell GPUs | 1 Grace CPU : 2 Blackwell GPU |
| FP4 Tensor Core2 | 1,440 PFLOPS | 40 PFLOPS |
| FP8/FP6 Tensor Core2 | 720 PFLOPS | 20 PFLOPS |
| INT8 Tensor Core2 | 720 POPS | 20 POPS |
| FP16/BF16 Tensor Core2 | 360 PFLOPS | 10 PFLOPS |
| TF32 Tensor Core | 180 PFLOPS | 5 PFLOPS |
| FP32 | 6,480 TFLOPS | 180 TFLOPS |
| FP64 | 3,240 TFLOPS | 90 TFLOPS |
| FP64 Tensor Core | 3,240 TFLOPS | 90 TFLOPS |
| GPU Memory | Bandwidth | Up to 13.5 TB HBM3e | 576 TB/s | Up to 384 GB HBM3e | 16 TB/s |
| NVLink Bandwidth | 130TB/s | 3.6TB/s |
| CPU Core Count | 2,592 Arm® Neoverse V2 cores | 72 Arm Neoverse V2 cores |
| CPU Memory | Bandwidth | Up to 17 TB LPDDR5X | Up to 18.4 TB/s | Up to 480GB LPDDR5X | Up to 512 GB/s |
